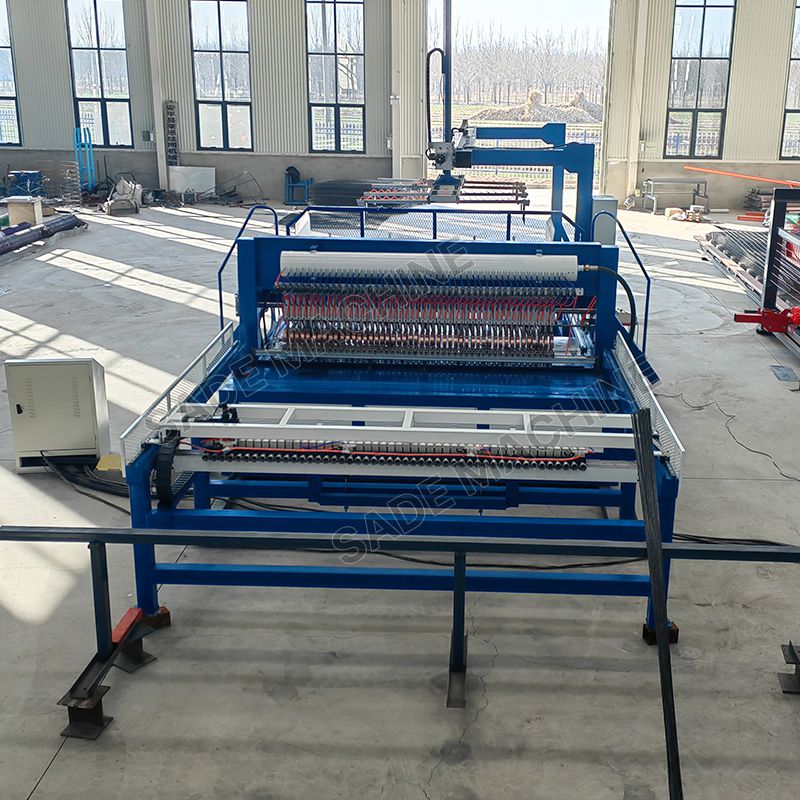

This machine adapt pneumatic welding, which can weld mesh better and make the finished mesh flatter. The pneumatic reinforcing wire mesh welding machine adopts European technology. This machine also adopts synchronous control technique, welding time and sub-control welding is composed of PLC program system.
Product Advantages
This machine adopts Japan Mitsubishi brand electronic synchronous control technique, welding time and sub-control welding are all composed of digital integrated circuits, which has high control accuracy, stable performance, firm welding spots and without burned mark.The welding speed is fast and the operation is simple and easy to master.
The weft matched with the accurate weft cutting device and accurate positioning device, ensures the weft at the same length and without being out.
Product Usage
The reinforcement mesh welding machine is used to make steel rebar mesh, road mesh, building construction mesh, etc.
Technique Parameter
| MODEL | HWJ1500C | HWJ2000C | HWJ2500C | HWJ3000C |
| Max mesh width | 1500mm | 2000mm | 2500mm | 3000mm |
| Wire diameter | 4-8mm | 4-8mm | 4-8mm | 4-8mm |
| Line wire spacing | 100-300mm | 100-300mm | 100-300mm | 100-300mm |
| Cross wire spacing | 25-300mm | 25-300mm | 25-300mm | 25-300mm |
| Mesh length | Max 6m | Max 6m | Max 6m | Max 6m |
| Line wire type | By bars | By bars | By bars | By bars |
| Cross wire type | By bars | By bars | By bars | By bars |
| Welding speed | 80-100times/min | 80-100times/min | 80-100times/min | 80-100times/min |
| Electric power | 185KVA*4 | 185KVA*5 | 185KVA*6 | 185KVA*8 |
01
Requirement Communication
We discussed the detaills for customer’s requirements including product specifications, functions, etc.
02
Scheme Design
According to customer needs, the company's design department provides a preliminary design plan and confirms it with the customer.
03
Technical Evaluation
The technical team conducts a feasibility evaluation of the plan to ensure that it meets production requirements and customer needs.
04
Contract Signing
After the two parties reach a consensus on the design plan, price, delivery date, etc., they sign a formal contract.
05
Manufacturing
The production department customizes the equipment according to the contract requirements to ensure quality and performance.
06
Quality Inspection
The quality inspection department conducts strict debugging and inspection of the finished equipment to ensure that it meets customer requirements.
07
Delivery Acceptance
After the customer's on-site/video debugging and acceptance is qualified, the product will be delivered and relevant operation guidance will be provided.
