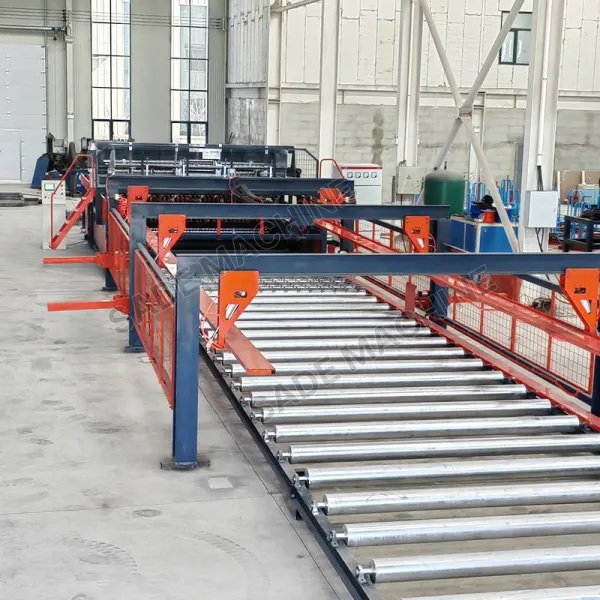

The reinforcing mesh welding machine can processed maximum width of welded mesh that is 3000mm, and the finished mesh is 3-14mm in wire diameter. And the finished mesh can by sheet or coil. The line wire type can be choose 3-6 by coil or 5-14 by bars. The steel mesh welding machine adopts synchronous CNC technology. The welding time and sub-control welding are both managed by the control system, making the operation more intelligent and humane.High welding precision and high pressure ensure strong solder joints.
Product Advantages
High product quality:The mesh welding machine adopts CNC technology to ensure accurate mesh size and uniform and firm welding spots.
The finished mesh can be rolled up, and the mesh can be cut according to the actual size required during use.
Stable welding quality: The welding technology and control system adopted by the CNC welding mesh machine can ensure the stability of welding quality and avoid welding defects.Because the pressure provided by the cylinder is large, it can provide sufficient pressure for the welding point electrodes of the steel mesh welding machine, and it also provides large welding current.
The CNC welding machine has a fast welding speed and can quickly complete large-volume welding tasks.
Product Usage
It can be used in the production and manufacturing of road and railway guardrail nets, fence nets, floor pouring roof nets, coal mine support nets, construction nets and other products.It has broad application prospects in many industries such as agriculture and industry.
Technique Parameter
Model | GWJ2000 | GWJ2500 | GWJ3000 |
Max Mesh width | 2000mm | 2500mm | 3000mm |
Mesh Length | 3-8m(Max12m） | 3-8m(Max12m） | 3-8m(Max12m） |
Mesh type | By sheet or coil | By sheet or coil | By sheet or coil |
Line Wire Spacing | 100-300mm | 100-300mm | 100-300mm |
Cross Wire Spacing | 50-300mm | 50-300mm | 50-300mm |
Wire Diameter | 3-12mm | 3-12mm | 3-12mm |
Line Wire Type | 3-6by coils/5-12by bars | 3-6by coils/5-12by bars | 3-6by coils/5-12by bars |
Cross Wire Type | Bars | Bars | Bars |
Welding speed | 60-85times/min | 60-85times/min | 60-85times/min |
Electric Power | 185KVAX5 | 185KVAX6 | 185KVAX8 |
01
Requirement Communication
We discussed the detaills for customer’s requirements including product specifications, functions, etc.
02
Scheme Design
According to customer needs, the company's design department provides a preliminary design plan and confirms it with the customer.
03
Technical Evaluation
The technical team conducts a feasibility evaluation of the plan to ensure that it meets production requirements and customer needs.
04
Contract Signing
After the two parties reach a consensus on the design plan, price, delivery date, etc., they sign a formal contract.
05
Manufacturing
The production department customizes the equipment according to the contract requirements to ensure quality and performance.
06
Quality Inspection
The quality inspection department conducts strict debugging and inspection of the finished equipment to ensure that it meets customer requirements.
07
Delivery Acceptance
After the customer's on-site/video debugging and acceptance is qualified, the product will be delivered and relevant operation guidance will be provided.
