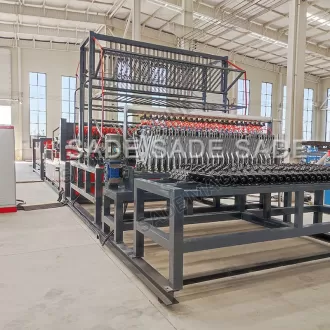

The wire mesh welding machine is used to 3-6mm wire diameter, and the length of the mesh is generally 3-6m, the mesh width is 1200mm,1500mm, 2000mm and 1500mm, our machine can customized according to clients need. The machine adopts a fully automatic control system, which is convenient to operate the machine. It has two feeding methods of cutting wire and coiling wire to ensure high-quality production of finished wire mesh.
Product Advantages
Mesh holes of different sizes can appear on the same mesh. The hole spacing of the line wires is adjustable. Enter the hole spacing of the cross wires into the computer to achieve the hole spacing you get. Both the line wires and the cross wires are pre-straightened and cut by a straightening machine.
The welding speed is fast, and large quantities of mesh can be welded in a short time, ensuring quality and saving time.
Using an automatic blanking device, the mesh sheets are stacked neatly, making transportation convenient and reducing manpower.
Product Usage
Reinforced mesh is widely used in construction projects, highway bridges, tunnel excavation, slope support, highway maintenance, barbed wire guardrails, aquaculture, grain storage and other industries. The use of steel mesh welding machines can greatly improve production efficiency, reduce labor costs, and ensure the stability of the mesh.
Technique Parameter
| Model | HWJ1200A | HWJ1500A | HWJ2000A | HWJ2500A |
| Max Mesh Width | 1200mm | 1500mm | 2000mm | 2500mm |
| Wire Diameter | 3-6mm | 3-6mm | 3-6mm | 3-6mm |
| Mesh Type | By sheet | By sheet | By sheet | By sheet |
| Line Wire Spacing | 50-300mm | 50-300mm | 50-300mm | 50-300mm |
| Cross Wire Spacing | 50-300mm | 50-300mm | 50-300mm | 50-300mm |
| Mesh Length | 3-6m(Max100m) | 3-6m(Max100m) | 3-6m(Max100m) | 3-6m(Max100m) |
| Line Wire Type | By coils | By coils | By coils | By coils |
| Cross Wire Type | By bars | By bars | By bars | By bars |
| Welding Speed | 80-100times/min | 80-100times/min | 80-100times/min | 80-100times/min |
| Electric Power | 200KVAX3 | 200KVAX4 | 200KVAX5 | 200KVAX6 |
01
Requirement Communication
We discussed the detaills for customer’s requirements including product specifications, functions, etc.
02
Scheme Design
According to customer needs, the company's design department provides a preliminary design plan and confirms it with the customer.
03
Technical Evaluation
The technical team conducts a feasibility evaluation of the plan to ensure that it meets production requirements and customer needs.
04
Contract Signing
After the two parties reach a consensus on the design plan, price, delivery date, etc., they sign a formal contract.
05
Manufacturing
The production department customizes the equipment according to the contract requirements to ensure quality and performance.
06
Quality Inspection
The quality inspection department conducts strict debugging and inspection of the finished equipment to ensure that it meets customer requirements.
07
Delivery Acceptance
After the customer's on-site/video debugging and acceptance is qualified, the product will be delivered and relevant operation guidance will be provided.
