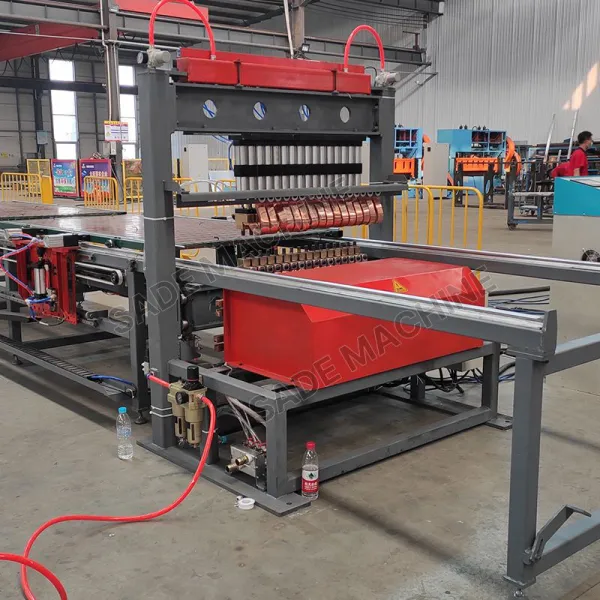

Cable Tray Welding Machines are specialized equipment designed for the automated production of cable trays, which are essential components in electrical and data cable management systems. These machines use advanced welding technology to fabricate cable trays by joining metal strips or wires into a structured grid or ladder-like design. The process typically involves resistance welding, where electric current generates heat to fuse the metal components together, ensuring a strong and durable bond.
Applications of Cable Tray Welding Machines
1. Electrical Installations: Cable trays are widely used in electrical systems to organize and support power cables in commercial, industrial, and residential buildings.
2. Data Centers: In data centers, cable trays manage and protect network cables, ensuring efficient cable routing and minimizing the risk of damage.
3. Industrial Facilities: These trays are essential in factories and plants for organizing power and control cables, maintaining safety and operational efficiency.
4. Telecommunications: Cable trays are used in telecommunications infrastructure to support and organize communication cables.
5. Public Infrastructure: They are employed in public projects such as airports, train stations, and hospitals to manage electrical and data cables effectively.
Cable tray welding machines play a crucial role in the efficient and high-quality production of cable trays, which are vital for cable management in various industries. Their advantages in terms of efficiency, consistency, cost-effectiveness, durability, and flexibility make them indispensable in modern manufacturing and infrastructure development.
Advantages of Cable Tray Welding Machines
High Efficiency
These machines significantly increase production speed compared to manual welding, enabling large-scale manufacturing of cable trays.
Consistency and Precision
Automated welding ensures uniform weld quality and precise dimensions, resulting in consistent and reliable cable trays.
Cost-Effectiveness
By reducing labor costs and minimizing material waste, these machines offer a cost-efficient solution for high-volume production.
Durability
The welded cable trays are robust, corrosion-resistant, and capable of supporting heavy loads, making them suitable for demanding environments.
Flexibility
The machines can be adjusted to produce cable trays of various sizes, shapes, and load-bearing capacities, catering to diverse application needs.
Machine Parameters
| Model | C03 |
| Wire diameter | 2.5-5mm |
| Hole size | 25-300mm |
| Width | Max 1000/1800mm |
| Length | MAX 3000mm*2pcs |
| Transformer | 160kva*2 |
01
Requirement Communication
We discussed the detaills for customer’s requirements including product specifications, functions, etc.
02
Scheme Design
According to customer needs, the company's design department provides a preliminary design plan and confirms it with the customer.
03
Technical Evaluation
The technical team conducts a feasibility evaluation of the plan to ensure that it meets production requirements and customer needs.
04
Contract Signing
After the two parties reach a consensus on the design plan, price, delivery date, etc., they sign a formal contract.
05
Manufacturing
The production department customizes the equipment according to the contract requirements to ensure quality and performance.
06
Quality Inspection
The quality inspection department conducts strict debugging and inspection of the finished equipment to ensure that it meets customer requirements.
07
Delivery Acceptance
After the customer's on-site/video debugging and acceptance is qualified, the product will be delivered and relevant operation guidance will be provided.
