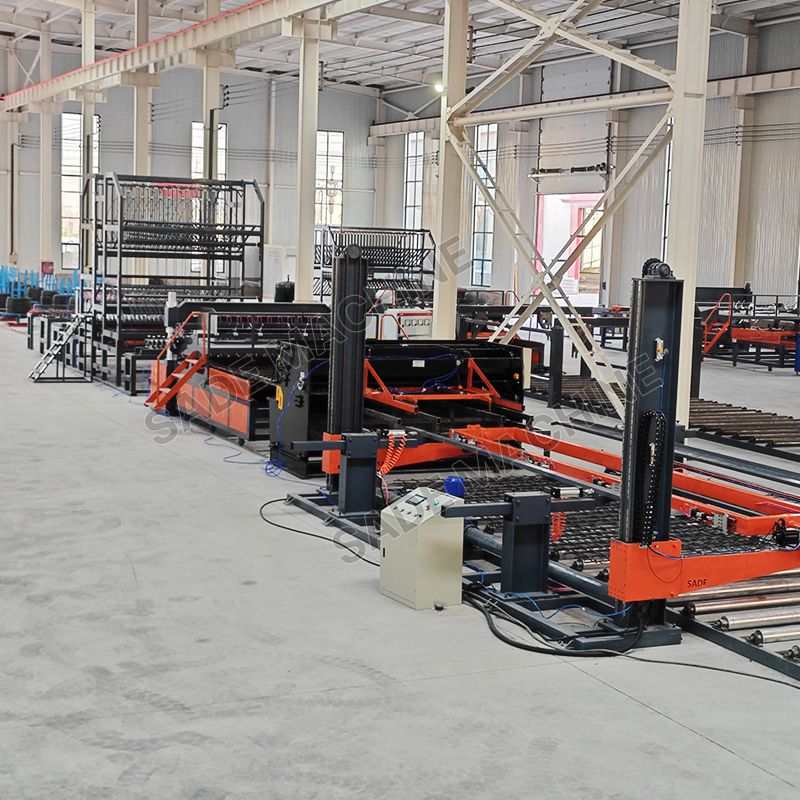

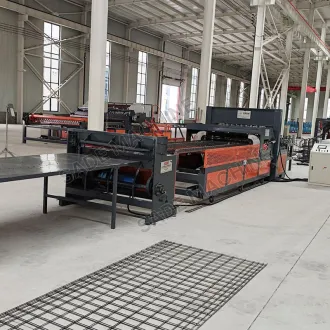

5-12 wire mesh welding machine is a mechanical equipment specially used to produce 5-12mm diameter steel mesh. Using PLC control, the welding time can be adjusted individually, ensuring the accuracy and consistency of the welding process. The whole process of the wire mesh welding machine from coiled wire feeding, host welding, mesh shearing, and netting is controlled automatically, the maximum mesh width that can be produced is 3500mm and the maximum mesh length is 3-6m, strong welding force ensures the welding quality of the finished mesh.
Product Advantages
Flexibility and convenience:The line wire spacing can be adjusted with related components, the cross wire spacing is controlled by PLC, and multiple cross wire spacings can be set on the same mesh.
High production efficiency:The equipment can automatically complete the entire process from wire threading to welding, Only one person can complete it,improving production efficiency.
Can choose the automatic mesh stacking with turntable part,save finished mesh stacking space.
Product Usage
The 5-12 wire mesh welding machine is suitable for the production of coal mine support nets, guardrail nets, high-rise building steel bridge nets, highway steel nets, construction steel nets and other products.It is an efficient, precise and multifunctional steel mesh production equipment that can meet the needs of various construction industries.
Technique Parameter
Model | GWJ2000A | GWJ2500A | GWJ3000A | GWJ3500A |
Max Mesh width | 2000mm | 2500mm | 3000mm | 3500mm |
Wire Diameter | 5-12mm | 5-12mm | 5-12mm | 5-12mm |
Mesh type | By sheet | By sheet | By sheet | By sheet |
Line Wire Spacing | 100-300mm | 100-300mm | 100-300mm | 100-300mm |
Cross Wire Spacing | 50-300mm | 50-300mm | 50-300mm | 50-300mm |
Mesh Length | 3-6m(Max12m） | 3-6m(Max12m） | 3-6m(Max12m） | 3-6m(Max12m） |
Line Wire Type | by bars | by bars | by bars | by bars |
Cross Wire Type | Bars | Bars | Bars | Bars |
Welding speed | 65-80times/min | 65-80times/min | 55-65times/min | 45-65times/min |
Electric Power | 200KVAX10 | 200KVAX12 | 200KVAX15 | 200KVAX17 |
01
Requirement Communication
We discussed the detaills for customer’s requirements including product specifications, functions, etc.
02
Scheme Design
According to customer needs, the company's design department provides a preliminary design plan and confirms it with the customer.
03
Technical Evaluation
The technical team conducts a feasibility evaluation of the plan to ensure that it meets production requirements and customer needs.
04
Contract Signing
After the two parties reach a consensus on the design plan, price, delivery date, etc., they sign a formal contract.
05
Manufacturing
The production department customizes the equipment according to the contract requirements to ensure quality and performance.
06
Quality Inspection
The quality inspection department conducts strict debugging and inspection of the finished equipment to ensure that it meets customer requirements.
07
Delivery Acceptance
After the customer's on-site/video debugging and acceptance is qualified, the product will be delivered and relevant operation guidance will be provided.
