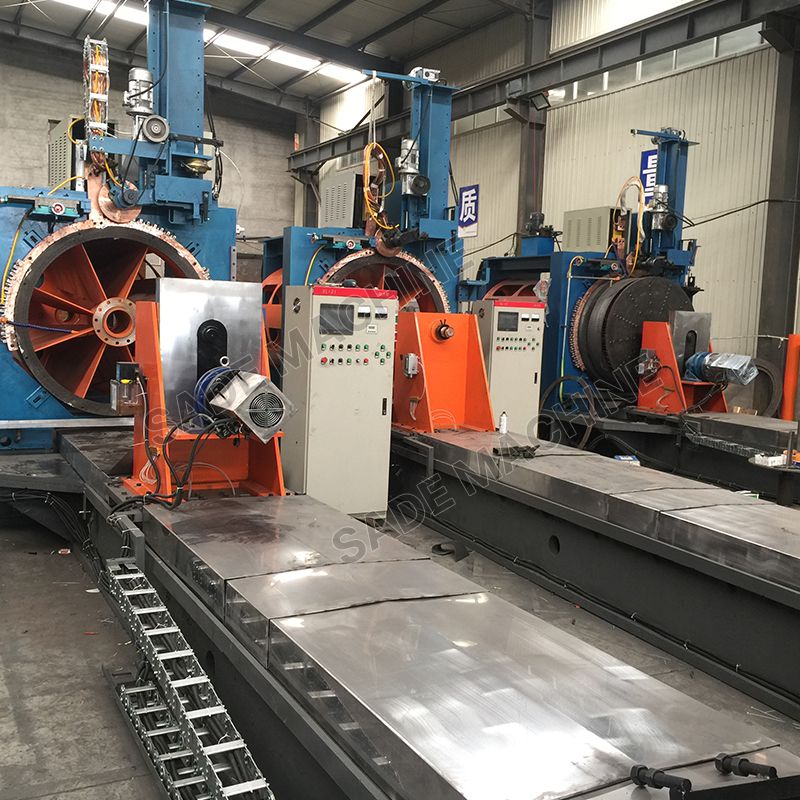

Wedge Wire Screen Welding Machine is for manufacturing of wedge wire screens in length up to max. 6000 mm. The strength,precision and design flexibility that characterize our screens makes them the choice in a broad range of industries and applications. It made up of CNC mainframe, welding transformer, control cabinet and so on.
Advantage
1. The Electric Devices Use world famous brand ,high quality keep full machine work at high accuracy and service long life
2. The Machine is controlled by CNC System,The Slot size and length can be adjusted on touch screen,high intelligence, easy operation
3. This machine equipped with Water cooling system,keep full machine work at right temperature when welding
Application:

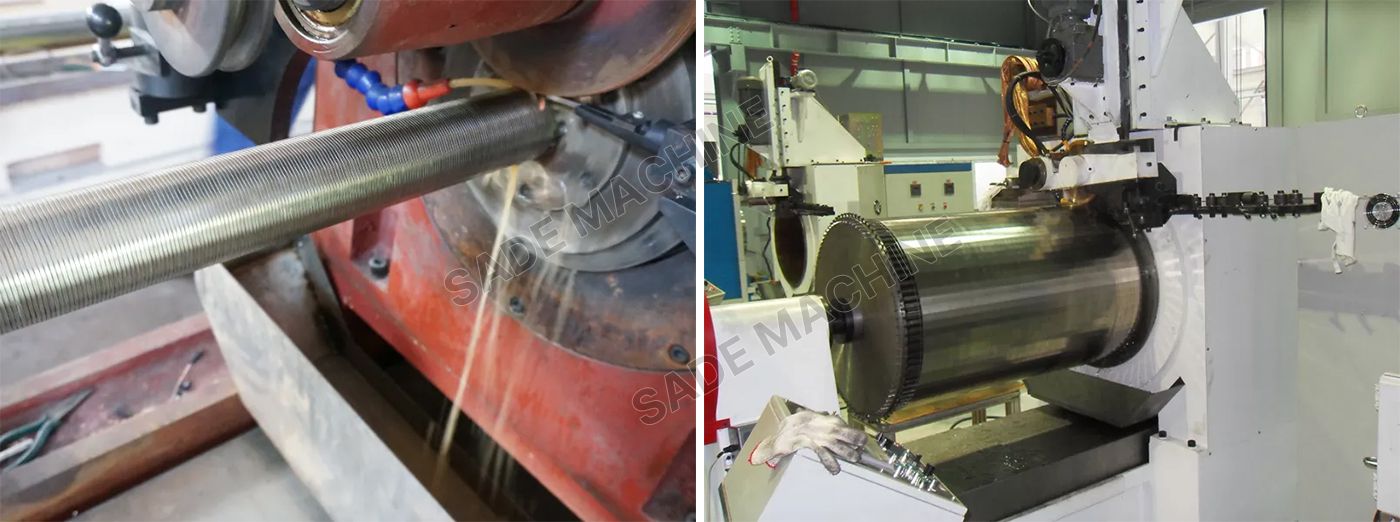

The machine is special for making Wedge Wire Screen, Filter Screen, V-shaped wire,Coanda Intake Screens, Cylindrical Screen, Rotary Screen, Flat Screen, Basket Screen,Looped Screen, Sieve Bend Screen, Intake Screen , for used in Water Treatment, Oil and Gas, Mining and Mineral, Food and Beverage, Pulp and Paper filtration field.
Machine Parameters
| MODEL | SWJ-200 | SWJ-500 | SWJ-1000 | SWJ-1200 |
| Max processing length | 2000mm | 6000mm | 6000mm | 4000mm |
| Machinable Diameter | 50-200mm | 50-500mm | 340-1000mm | 400-1200mm |
| Slot size | min0.1mm | min0.1mm | min0.2mm | min0.2mm |
| Work efficiency | 6-30r/min | 6-30rmin | 6-30r/min | 6-30r/min |
| Allowable error | +0.02mm | +0.02mm | +0.02mm | +0.02mm |
| Voltage | 380V1220V1440V1415V1600V,50160Hz,3 phase | |||
| Wire material | S304.S201.SAE1008,SAE1006 etc | |||
| Welding transformer | 1 00kw | |||
| Welding precision | If wire tolerance is within 0.01mm, welding precision will be within +0.04mm. | |||
| Weight | 8000kg | 8000kg | 8000kg | 8000kg |
01
Requirement Communication
We discussed the detaills for customer’s requirements including product specifications, functions, etc.
02
Scheme Design
According to customer needs, the company's design department provides a preliminary design plan and confirms it with the customer.
03
Technical Evaluation
The technical team conducts a feasibility evaluation of the plan to ensure that it meets production requirements and customer needs.
04
Contract Signing
After the two parties reach a consensus on the design plan, price, delivery date, etc., they sign a formal contract.
05
Manufacturing
The production department customizes the equipment according to the contract requirements to ensure quality and performance.
06
Quality Inspection
The quality inspection department conducts strict debugging and inspection of the finished equipment to ensure that it meets customer requirements.
07
Delivery Acceptance
After the customer's on-site/video debugging and acceptance is qualified, the product will be delivered and relevant operation guidance will be provided.
