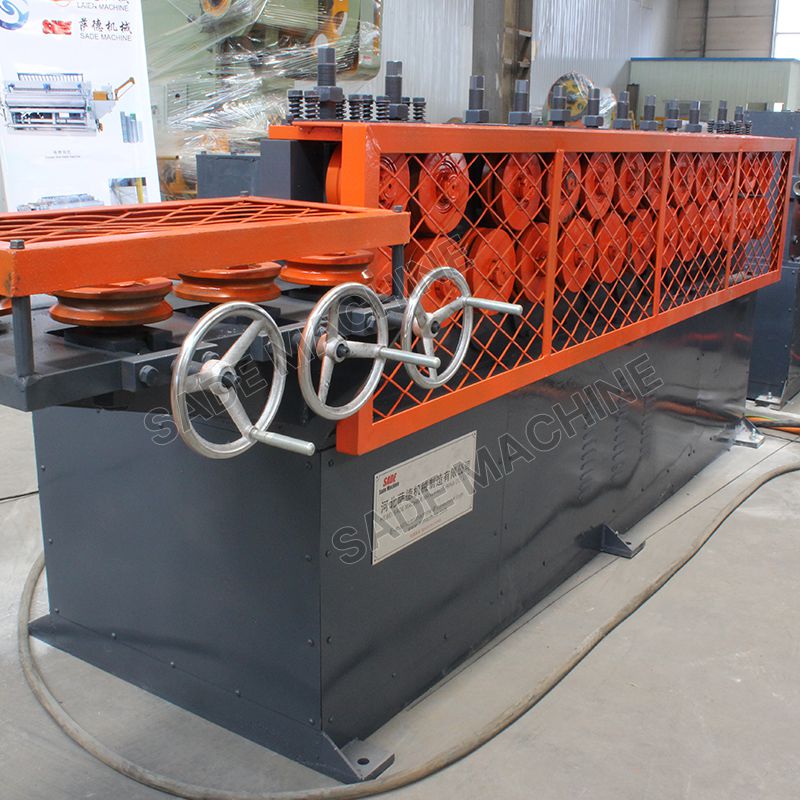

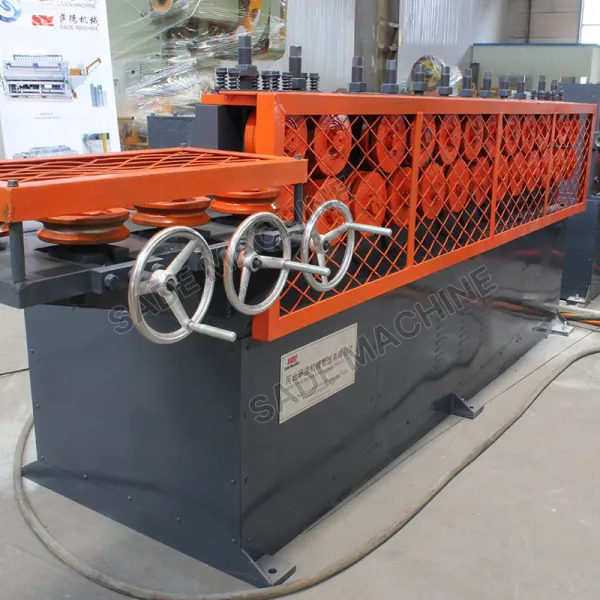

Cold-rolled ribbed steel bar production line.this machinery to manufacture cold rolled ribbed deformed wire in diameters 3.5 mm to 12 mm, complete set of machinery offered including main ribbing machine and auxiliary machines like. Wire drawing machines, wire pointing machine, but welding machine, descaling machine, electric control panel board, automatic wire straightening and cutting machine, roll wire machine.
Product Description
Production Flow:

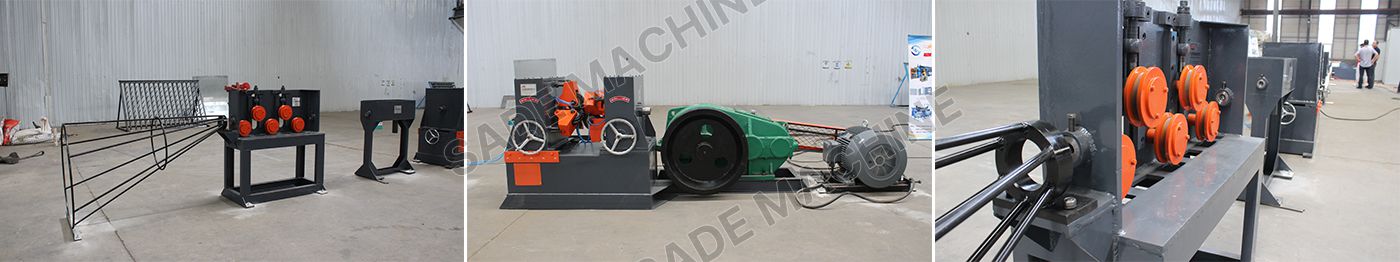

Wire pay-off --- Rust remover ---Scaling and reducing wire machine --- Wire milling machine --- Wire coiling machine --- Finished product rack
Advantages:
A. The reducer adopts the international reducer, which has large torque, low noise and strong durability.
B. The double-side reel is coated with cemented carbide or wear-resistant material.
C. Adopting the most advanced frequency conversion or electromagnetic technology in the world, it can save 40-60% of electricity, the lowest power consumption per ton is 8-10 degrees, the line speed can reach 90-230 meters per minute, and the production efficiency is improved by more than 40%. Protection of power transmission and transformation systems and electrical equipment is not damaged, which can greatly extend the service life of the machine.
D. rolling the shell body is cast with 45# pure steel, never cracking (Note: other manufacturers cast iron casting). The rolling mill turbine structure is integrated into one, and it is cast in 45# pure steel. It has no components, large pulling force, wear resistance, continuous teeth and durability.
E. bracket with cast steel adjustable bracket
Application:
cold Rolled Ribbed Deformed Wire is used in concrete reinforcement, electricity poles, railway sleepers, welded mesh panel. bridge building, precast units, runways, as skin reinforcement, slabs, beams, pre-stressed concrete units etc.
Machine parameters
Model | LE-10000T | LE-20000T | LE-550 |
Rebar diameter | 4-10mm | 5-12mm | 3-5mm |
Inlet wire diameter | 4.5-11mm | 5.5-14mm | Max.6.5mm |
Speed | 60m/min | 180m/min | 100-250m/min |
Ribbed power | 55-75kw | 75-110kw | 30KW |
Rebar type | Bar /coil （customized） | Bar /coil （customized） | Bar /coil （customized） |
01
Requirement Communication
We discussed the detaills for customer’s requirements including product specifications, functions, etc.
02
Scheme Design
According to customer needs, the company's design department provides a preliminary design plan and confirms it with the customer.
03
Technical Evaluation
The technical team conducts a feasibility evaluation of the plan to ensure that it meets production requirements and customer needs.
04
Contract Signing
After the two parties reach a consensus on the design plan, price, delivery date, etc., they sign a formal contract.
05
Manufacturing
The production department customizes the equipment according to the contract requirements to ensure quality and performance.
06
Quality Inspection
The quality inspection department conducts strict debugging and inspection of the finished equipment to ensure that it meets customer requirements.
07
Delivery Acceptance
After the customer's on-site/video debugging and acceptance is qualified, the product will be delivered and relevant operation guidance will be provided.
