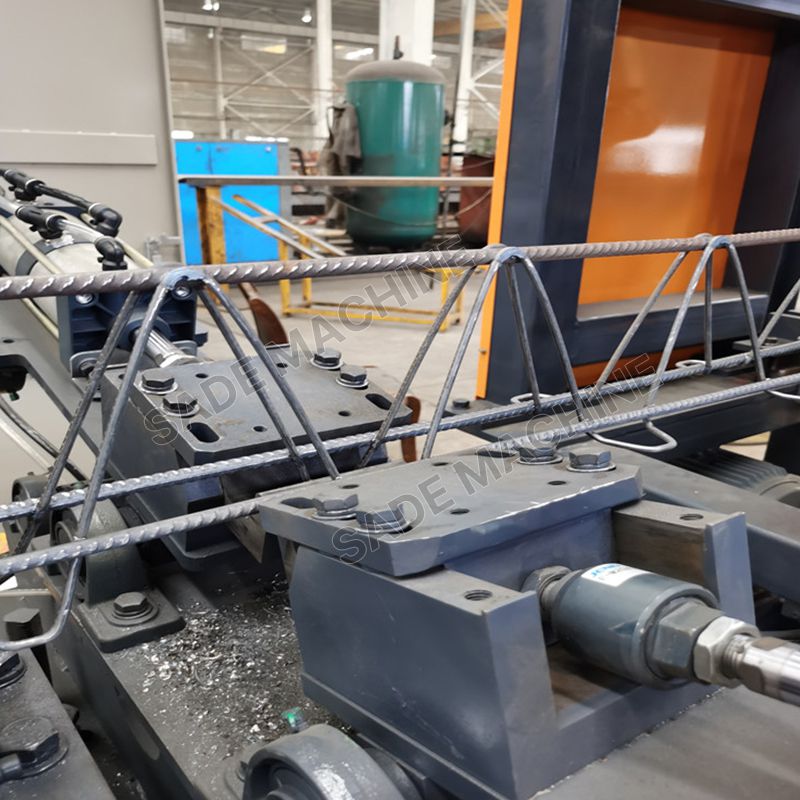

Lattice Girder production line is fully automated production line that sets the wire of raw material. Straightening steel bar, bending forming, automatic welding, fixed length cutting and numerical control delivery of finished products. Lattice Girder production line is widely used in the production of double block sleeper truss and the production of floor slab truss on high speed railway.
The product alias:The product alias: triangular beam truss, sleeper truss, double block sleeper truss, steel bar truss, composite floor board composite floor, truss, truss, truss welding, truss welding machine, automatic truss welding machine, truss forming, truss processing, steel truss, steel truss processing equipment, steel truss welding equipment, Steel truss forming equipment and truss welding machine
Advantage
1. Compact and reasonable structure with good appearance.
2. Easy operation, convenient use, fast, labor-cost saving and high production efficiency.
3. Multi welding spot for single-row,which has fast welding speed.
4. Inverter technology achieves energy-saving purpose and a long service life.
Application
1) Applied to precast slabs, pre-high-speed railway sleeper
2) Used in many high-rise, ultra- high-rise steel buildings
3) Used for steel building, mezzanine floor of“LOFT”
4) The force applied to the complex, special-shaped structure, building
5) Used in-situ concrete structure(RC) buildings
6) Used in the construction of slope roof structure
Machine Parameters
| MODEL | HJW350 | Transmission method | Mechanical Pneumatic |
| Girder Height | 70-300mm | Transmission method | AC servo motor |
| Girder width | 60-100mm | Bending side stirrup diameter | 4-8mm |
| Upper thread | 6-12mm | Max.working speed | 9-12m/min |
| Lower thread | 6-12mm | Step spacing | 190-210mm(Adjustable) |
| Girder length | 0.4-99m | Cutting method | Mechanical |
| Truss height error | +2mm | Truss Straightness | +3mm/m |
| The height of the upper and lower outcrops of the web steel bars | ≦3mm | ||
01
Requirement Communication
We discussed the detaills for customer’s requirements including product specifications, functions, etc.
02
Scheme Design
According to customer needs, the company's design department provides a preliminary design plan and confirms it with the customer.
03
Technical Evaluation
The technical team conducts a feasibility evaluation of the plan to ensure that it meets production requirements and customer needs.
04
Contract Signing
After the two parties reach a consensus on the design plan, price, delivery date, etc., they sign a formal contract.
05
Manufacturing
The production department customizes the equipment according to the contract requirements to ensure quality and performance.
06
Quality Inspection
The quality inspection department conducts strict debugging and inspection of the finished equipment to ensure that it meets customer requirements.
07
Delivery Acceptance
After the customer's on-site/video debugging and acceptance is qualified, the product will be delivered and relevant operation guidance will be provided.
