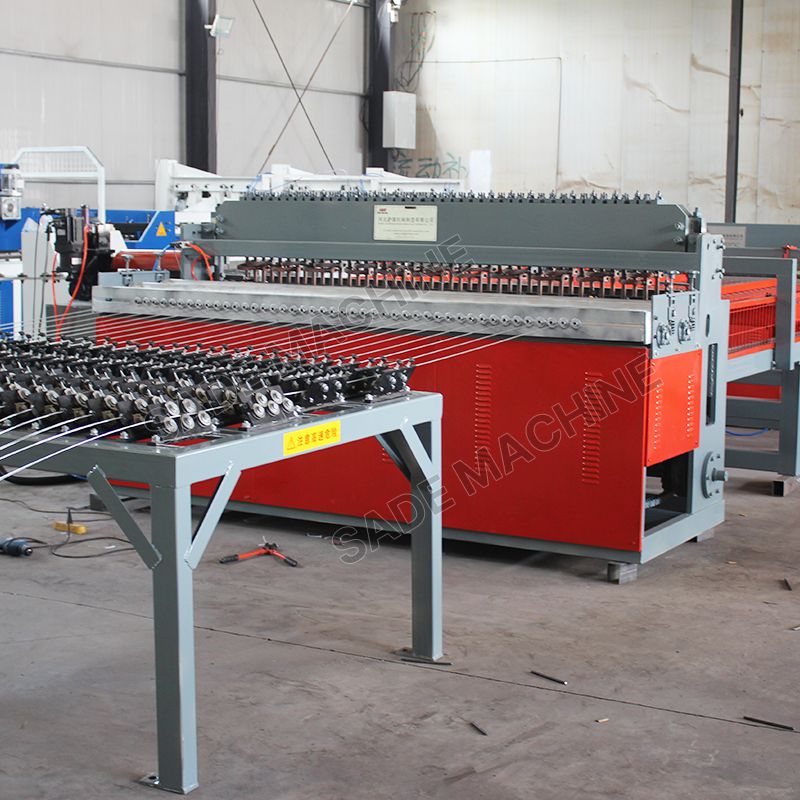

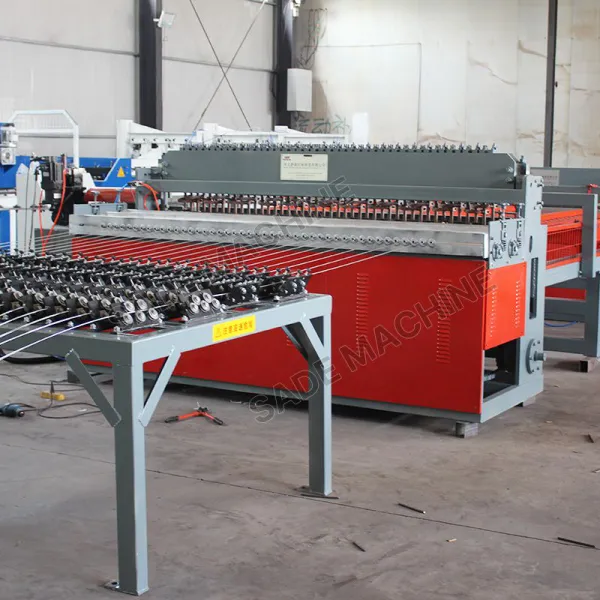

2-4mm Fully Automatic Warp And Weft Wire Coiling Machine is designed for producing high quality welding wire mesh. This model HWJ1500D adopts mechanical welding, warp and weft wires are fed by coiling wire, the wire is straightened by leveling wheel device, and finally cut into sheets. This machine has accurate wire mesh placement and high welding strength. It is able to handle wire diameters from 2mm to 4mm, providing flexibility for different mesh specifications. The machine has an automatic wire feeding system to ensure a smooth and consistent process, minimize manual labor and improve production efficiency. It is suitable for large-scale and small-scale welding wire mesh production for various purposes.
Product Advantages
This welding machine offers several advantages, including high automation, which reduces human error and labor costs. Its precise wire feeding and welding ensure uniform mesh quality and high tensile strength. Adopt CNC welding technology and mechanical welding method to change the mesh more flexibly The machine is highly versatile, capable of handling various wire diameters and mesh patterns. It provides a high level of production efficiency, reducing downtime and increasing output. Additionally, its advanced control system ensures stable operation and minimal maintenance.
Product Usage
The 2-4mm fully automatic welding machine is widely used in the construction, agricultural and industrial sectors. It is commonly used to produce welded wire mesh for fencing, as well as agricultural applications such as crop protection and livestock fencing. The precise and durable mesh it produces is also suitable for manufacturing a variety of industrial products such as safety barriers, cages and filters. Its ability to efficiently process large amounts of wire makes it ideal for demanding production environments.
Machine parameters
Model | HWJ1200D | HWJ1500D | HWJ2000D | HWJ2500D |
Max Mesh width | 1200mm | 1500mm | 2000mm | 2500mm |
Mesh type | By sheet or coil | By sheet or coil | By sheet or coil | By sheet or coil |
Line Wire Spacing | 50-300mm | 50-300mm | 50-300mm | 50-300mm |
Cross Wire Spacing | 25-300mm | 25-300mm | 25-300mm | 25-300mm |
Wire Diameter | 2-4mm/3-6mm | 2-4mm/3-6mm | 2-4mm/3-6mm | 2-4mm/3-6mm |
Line Wire Type | By bars or coils | By bars or coils | By bars or coils | By bars or coils |
Cross Wire Type | By bars or coils | By bars or coils | By bars or coils | By bars or coils |
Welding speed | 60-80times/min | 60-80times/min | 60-80times/min | 60-80times/min |
Electric Power | 160KVAX4 | 160KVAX5 | 160KVAX6 | 160KVAX8 |
01
Requirement Communication
We discussed the detaills for customer’s requirements including product specifications, functions, etc.
02
Scheme Design
According to customer needs, the company's design department provides a preliminary design plan and confirms it with the customer.
03
Technical Evaluation
The technical team conducts a feasibility evaluation of the plan to ensure that it meets production requirements and customer needs.
04
Contract Signing
After the two parties reach a consensus on the design plan, price, delivery date, etc., they sign a formal contract.
05
Manufacturing
The production department customizes the equipment according to the contract requirements to ensure quality and performance.
06
Quality Inspection
The quality inspection department conducts strict debugging and inspection of the finished equipment to ensure that it meets customer requirements.
07
Delivery Acceptance
After the customer's on-site/video debugging and acceptance is qualified, the product will be delivered and relevant operation guidance will be provided.
